Copper Tube Fin Air Cooled Evaporator
Copper Tube Fin Air Cooled Evaporator Structure The evaporator is mainly composed of copper tubes, fins (usually made of aluminum foil) and support structures. The copper tube is used as a channel for refrigerant flow, and the fins are closely attached to the copper tube to form a large area of...
Description

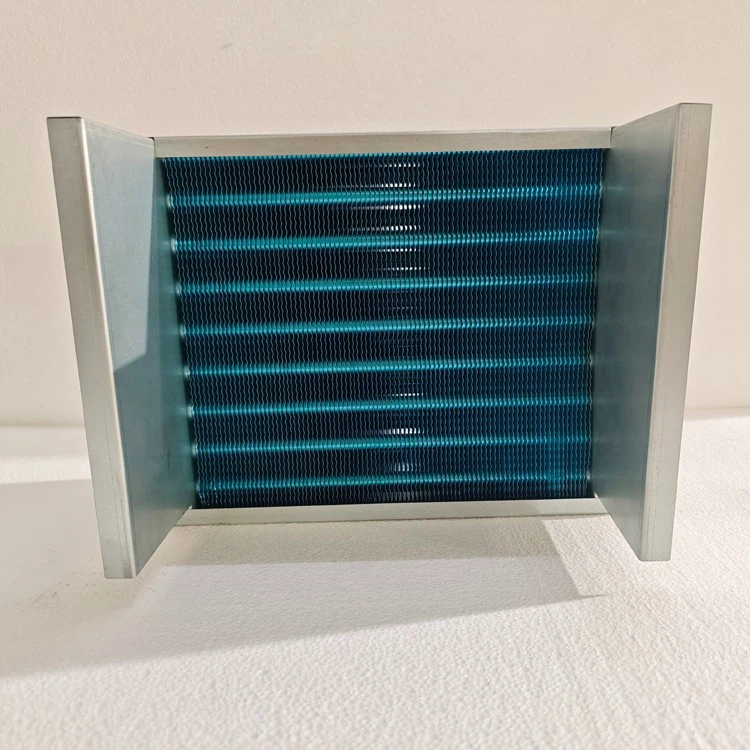

Copper Tube Fin Air Cooled Evaporator
Structure

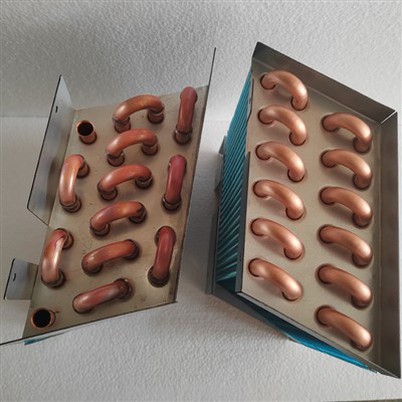

The evaporator is mainly composed of copper tubes, fins (usually made of aluminum foil) and support structures. The copper tube is used as a channel for refrigerant flow, and the fins are closely attached to the copper tube to form a large area of heat exchange surface.
Working principle
The refrigerant flows through the copper tube, absorbing heat from the fins and the air around them through the evaporation process, thereby reducing the air temperature. The fin design enhances the efficiency of heat exchange between air and refrigerant and improves the overall performance of the evaporator.
Advantage
High efficiency
Reliability
Easy maintenance
Our Products
|
TUBE |
Copper |
Titanium |
Aluminum |
Carbon steel |
|
Stainless steel 304 |
Stainless steel 316 |
Cu-Ni(90/10) |
Cu-Ni(70/30) |
|
|
FIN |
Copper |
Aluminum |
Stainless steel |
|
|
Carbon steel |
Titanium |
|
|
|
|
FRAME |
Galvanized |
Aluminum |
Stainless steel |
upkeep
Regular inspection
Check the condition of the copper pipe and fins regularly to ensure that there are no leaks or clogs.
Cleaning
Regular cleaning of fins and pipes to prevent dust and dirt from affecting heat exchange efficiency.
Check the fan
Make sure the fan is working properly to ensure good air flow.
Our factory & quipment
Hot Tags: copper tube fin air cooled evaporator, China copper tube fin air cooled evaporator manufacturers, suppliers, factory, Deep freezer refrigerator wire tube condenser, micro plate heat exchangers, cold room condenser, direct expansion evaporator, auto ac evaporator, heat exchanger cooling system
