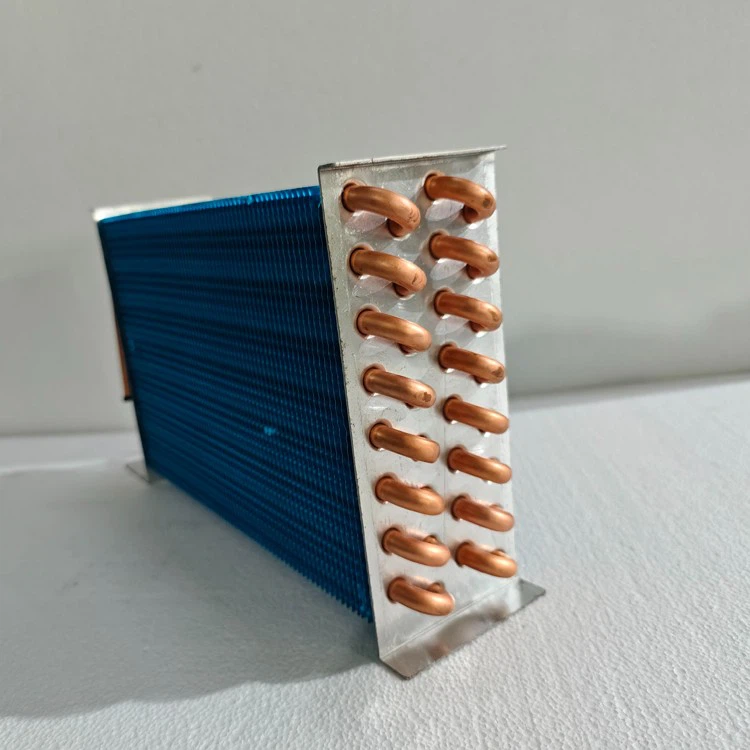

Commercial Air Conditioning Evaporator
Commercial Air Conditioning Evaporator
Commercial Air Conditioning Evaporator
Commercial Air Conditioning Evaporator

Commercial Air Conditioning Evaporator

Type and structure According to the different structure and application characteristics of commercial air conditioning evaporator, it can be divided into many types, such as shell and tube evaporator, dry evaporator and so on. Among them, the shell and tube evaporator is composed of a copper...

Send Inquiry

Description

Type and structure

According to the different structure and application characteristics of commercial air conditioning evaporator, it can be divided into many types, such as shell and tube evaporator, dry evaporator and so on. Among them, the shell and tube evaporator is composed of a copper tube sleeve in a steel pipe, the refrigerant flows in the copper tube, and the steel pipe is surrounded by water or other coolant. As the refrigerant evaporates, the heat is transferred to water or coolant outside the copper pipe, causing them to absorb the heat and carry it away. The main difference of dry evaporator is that the refrigerant flows in the tube, and the carrier refrigerant flows outside the tube, although the heat transfer effect is not as good as the full liquid type, it has the advantages of the effect of the anhydrous column on the evaporation temperature and the oil return effect.

High Quality

Advanced Equipment

Professional Team

Custom Service

Specification	Tube pitchA	Row pitchB	Tube size	Tube Material	Fin pitch	Fin Material
*φ7mm2118.2*	21mm	18.2mm	φ7mm	Copper Tube(SmoothTubeor Rifled Tube)	2.0-4.5mm adjustable	Aluminumfin(Bare finorhydrophilicfin)
*φ9.52mm2521.65*	25mm	21.65mm	φ9.52mm	Copper Tube(SmoothTubeor Rifled Tube)	2.0-3.5mm adjustable	Aluminumfin(Bare finorhydrophilicfin)
*φ9.52mm2521.65*	25mm	21.65mm	φ9.52mm	Copper Tube(SmoothTubeor Rifled Tube)	4.0-9.0mm adjustable	Aluminumfin(Bare finorhydrophilicfin)
*φ12mm3535*	35mm	35mm	φ12mm	Copper Tube(SmoothTubeor Rifled Tube)	4.0-10mmadjustable	Aluminumfin(Bare finorhydrophilicfin)
*φ12mm3530.31*	35mm	30.31mm	φ12mm	Copper Tube(SmoothTubeor Rifled Tube)	4.0-10mm adjustable	Aluminumfin(Bare finorhydrophilicfin)
*φ15mm6030*	60mm	30mm	φ15mm	Copper Tube(SmoothTubeor Rifled Tube)	4.0-10mm adjustable	Aluminumfin(Bare finorhydrophilicfin)

Working principle

The working principle of the commercial air conditioning evaporator is the same as the basic working principle of the evaporator, that is, the refrigerant absorbs heat in the evaporator, transforming from liquid to gas, thereby taking away a lot of heat and achieving the refrigeration effect. Specifically, when the refrigerant passes through the heat transfer surface of the evaporator, it absorbs the surrounding heat and rapidly evaporates, forming a low-temperature and low-pressure gaseous refrigerant. At the same time, the air around the evaporator is sucked into the evaporator through the ventilation equipment such as the fan, and the heat is exchanged with the refrigerant, and the low-temperature air is then sent into the room to absorb the indoor heat and discharge out of the outdoor, so as to achieve the refrigeration effect.

Our Products

Advantage

Efficient heat exchange mode can effectively transfer heat from low temperature material to high temperature material to achieve refrigeration effect;
