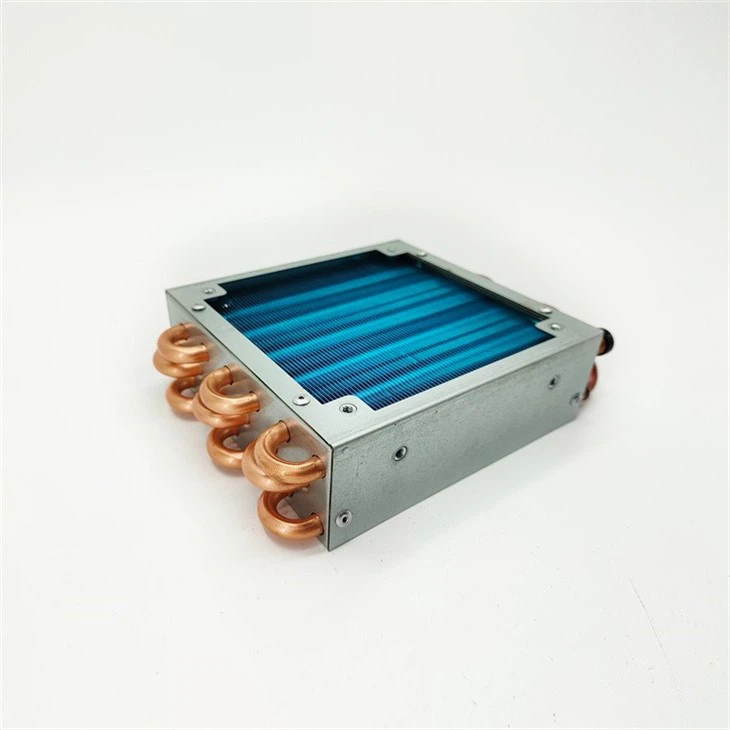

Hydrophilic Foil Copper Tube Condenser

Hydrophilic Foil Copper Tube Condenser

There are four major components in a refrigeration system: compressor, condenser, evaporator and throttle valve.

The condenser is a kind of heat exchanger, which can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast way. The working process of the condenser is an exothermic process, so the temperature of the condenser is relatively high.



1. Material: Copper, aluminum

2.Fin: Hydrophilic, bare

3. Fin type: Flat fin, corrugated fin, shutter/lanced fin

4. Tube: Diameter 7mm, 7.94mm, 8mm, 9.52mm 12.7mm

5. Tube type: Grooved or smooth tube

6. The fin spacing is 1.3-5.3mm, which can be adjusted according to the mold

7. Widely used in refrigeration industry, cold storage and other refrigeration systems.

8. We can provide products according to customized samples or drawings.







The fins and copper tubes are hydraulically expanded and leak-tested for persistent pressure to ensure tight integration and greatly enhance the heat conduction effect. The collecting pipe is made of seamless steel pipe, and the designed flow path is evenly distributed and the pressure is reduced. According to the technical quality requirements, do a water pressure test of 1.6Mpa, keep the pressure for 30 minutes without leakage.



Certificate of honor

Other different types of evaporator/condenser

Product superiority

Factory actual shoot

Service process

Packaging transportation

Our condensers/evaporators can be used in refrigerators, freezers, display cases, water dispensers, water coolers.

We can supply products according to customers' drawings or samples.

Please feel free to contact us if you have needs.



Why choose us?

• Our customer service team is available 24/7 to answer any questions and provide support to our customers.
• Our company uses effective marketing strategy to expand the scale rapidly, seize the market, and lay a solid foundation for the future fierce competition and sustainable development of the company.
• Our state-of-the-art manufacturing facility is equipped with the latest technology and equipment to ensure the highest level of quality in our products.
• We enhance the awareness of learning, improve the consciousness of learning and apply it to the actual work.
• Our expertise in the field of Condenser products allows us to provide valuable insights and advice to our customers.
• We are constantly evaluating technological and mechanical advancements in the manufacturing and design industries so that we can apply them to our customers' growing business needs.
• Our commitment to sustainability is evident in our manufacturing practices and the materials we use in our products.
• Since the establishment of our brand, we always adhere to technology-based, user first, and are committed to providing high-quality Hydrophilic Foil Copper Tube Condenser for consumers.
• Our Condenser products are made to the highest standards and are of exceptional quality.
• Relying on the company's many years of working experience, by attracting external senior talents and external high-tech, relying on scientific management to keep making progress.



Specification of aluminum tube fin condenser

Aluminum tube	Hole distance	Column distance	Flating height of fin
7	21	12.7	1.6-2.4
7	21	18.2	1.5-4.5
9.52	25	21.65	1.8-5.7



Specification of copper tube fin evaporator&condenser

No.	Copper tube	Hole distance	Column distance	Flating height of fin
1	5	19.05	16	1.5-5
2	5	21	18.2	1.5-5
3	6	25	21.65	1.4-6
	6.35	25	21.65	1.4-6
4	7	25	21.65	1.4-6.5
5	7	21	12.7	1.4-3
6	7	21	18.2	1.4-6.5
7	7	21.8	20	1.5-4.5
8	7.94(5/16)	25	21.65	1.4-5
9	9.52(3/8)	25	21.65	4.0-10
10	9.52(3/8)	25.4	15.88	1.4-3
11	9.52(3/8)	25	12.5	1.8-5
	9.52(3/8)	25	25	1.4-4
12	9.52(3/8)	35	35	5.0-10
13	12(7/16)	35	35	6-8.5
14	12.7(1/2)	31.75	27.5	6-8.5
