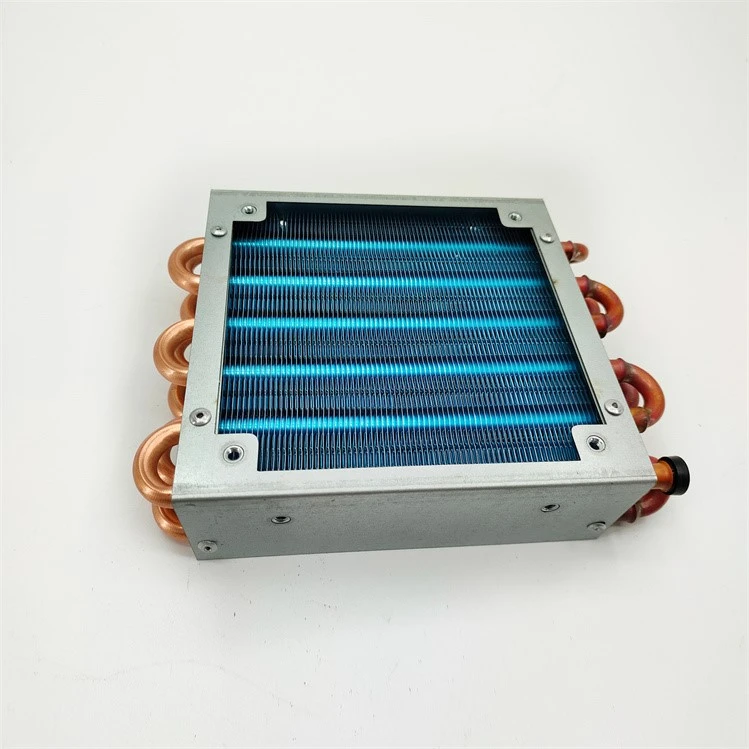

Fin Condenser With Fan Cover
The condenser can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast way. Both the condenser coil and the evaporator are important parts of an air conditioning system. They work together to cool your home, so the evaporator coil cannot...
Description
The condenser can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast way.
Both the condenser coil and the evaporator are important parts of an air conditioning system. They work together to cool your home, so the evaporator coil cannot complete the cooling cycle without the help of the condenser coil.
Technical advantages of finned condensers:
1. Fins produced are of high quality standards.
2. The edges of the fins can be straight or corrugated, depending on the application.
3. All coils are 100% leak tested and cleaned inside and out by a heated oven with high temperature air circulation.
4. The mechanical expansion of the copper tube to the fin ensures the efficient heat transfer of the condenser and evaporator.
5. Superior raw materials: We source only the highest quality raw materials from around the world to manufacture heat exchangers that meet global standards.
6. Copper tubes with diameters of 7mm, 7.94mm, 9.52mm and 12.75mm.
7. Blue aluminum foil with hydrophilic and biological (healthy) properties.
Certificate of honor
Product superiority
Factory actual shoot
Service process
Packaging transportation
We can provide products according to your requirements, please contact me for more information.
Why choose us?
- We offer competitive pricing on all of our Condenser products, without sacrificing quality or service.
- We hope to form a scientific and standardized cooperative management mechanism and build an effective management system.
- Our goal is to provide our customers with the best possible service and support, from product selection to delivery and beyond.
- We pursue a culture where everyone is equal in personality, so that no matter what position or level, collaboration and communication must be based on mutual trust and respect.
- We offer a wide range of Condenser products to meet the needs of various industries and applications.
- We establish a long-term mechanism of standardized management, and by comparing and analyzing the landmark indicators and management practices in construction, production and operation with those of benchmark enterprises, we comprehensively improve the construction of enterprises and enhance the core competitiveness and development of the company.
- Our company culture is centered around customer satisfaction and excellence in all that we do.
- Our company insists on carefully analyzing market demand and constantly developing new Fin Condenser With Fan Cover.
- Our team of experts is always available to answer any questions and provide guidance to our customers.
- We take it as our responsibility to continuously meet the needs of our customers and cooperate sincerely with all walks of life to create a brilliant future.
Specification of aluminum tube fin condenser
| Aluminum tube | Hole distance | Column distance | Flating height of fin |
| 7 | 21 | 12.7 | 1.6-2.4 |
| 7 | 21 | 18.2 | 1.5-4.5 |
| 9.52 | 25 | 21.65 | 1.8-5.7 |
Specification of copper tube fin evaporator&condenser
| No. | Copper tube | Hole distance | Column distance | Flating height of fin |
| 1 | 5 | 19.05 | 16 | 1.5-5 |
| 2 | 5 | 21 | 18.2 | 1.5-5 |
| 3 | 6 | 25 | 21.65 | 1.4-6 |
| 6.35 | 25 | 21.65 | 1.4-6 | |
| 4 | 7 | 25 | 21.65 | 1.4-6.5 |
| 5 | 7 | 21 | 12.7 | 1.4-3 |
| 6 | 7 | 21 | 18.2 | 1.4-6.5 |
| 7 | 7 | 21.8 | 20 | 1.5-4.5 |
| 8 | 7.94(5/16) | 25 | 21.65 | 1.4-5 |
| 9 | 9.52(3/8) | 25 | 21.65 | 4.0-10 |
| 10 | 9.52(3/8) | 25.4 | 15.88 | 1.4-3 |
| 11 | 9.52(3/8) | 25 | 12.5 | 1.8-5 |
| 9.52(3/8) | 25 | 25 | 1.4-4 | |
| 12 | 9.52(3/8) | 35 | 35 | 5.0-10 |
| 13 | 12(7/16) | 35 | 35 | 6-8.5 |
| 14 | 12.7(1/2) | 31.75 | 27.5 | 6-8.5 |
