The role of aluminum fins in the evaporator

The aluminum fins in the evaporator play a crucial role in the operation of the refrigeration system. The evaporator is a key component in a refrigeration cycle where the refrigerant absorbs heat from the space being cooled, causing it to evaporate and thus cooling the surrounding area. The aluminum fins in the evaporator serve several important functions:

Heat Transfer: The primary function of the aluminum fins is to facilitate heat transfer. As the warm air from the space being cooled passes over the evaporator coils, the aluminum fins increase the surface area of the coils, allowing for efficient heat exchange between the refrigerant inside the coils and the air outside. This process facilitates the transfer of heat from the air to the refrigerant, leading to the cooling effect.

Increased Efficiency: The presence of aluminum fins enhances the efficiency of the evaporator by improving the heat transfer process. The extended surface area provided by the fins enables a greater contact area between the air and the refrigerant, resulting in improved heat exchange and more effective cooling.

Condensate Drainage: In addition to heat transfer, the aluminum fins also aid in the drainage of condensate that forms during the evaporator's operation. The fins are designed to allow the condensed water vapor to flow down and away from the evaporator coils, preventing the buildup of moisture and ensuring proper drainage.

Structural Support: The aluminum fins provide structural support to the evaporator coils, helping to maintain their shape and integrity under the pressures and forces experienced during operation.

The aluminum fins in the evaporator are essential for enhancing heat transfer efficiency, promoting effective cooling, and ensuring proper condensate drainage, all of which contribute to the optimal functioning of the refrigeration system.

Why aluminum fins are critical in modern evaporators?

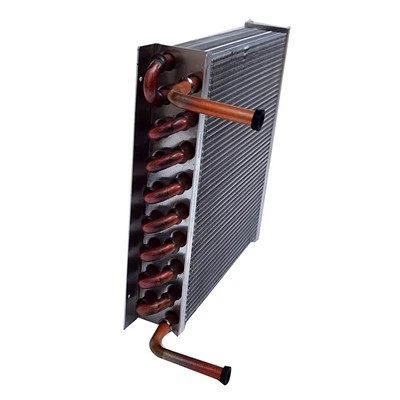

Although copper tubes carry the refrigerant, aluminum fins dominate the heat exchange process because they dramatically increase the effective heat transfer surface area at a low cost and lightweight structure.

Compared with bare copper tubing, finned surfaces can increase heat transfer efficiency by 5 to 10 times, depending on fin density and airflow conditions.



The performance of aluminum fins is not only determined by their material but also by the fin spacing (FPI – fins per inch).

1.Tight fin spacing → higher heat transfer but higher air resistance

2.Wider fin spacing → lower airflow resistance, better for dusty or humid environments





Walk-in coolers: medium fin spacing, balanced airflow and efficiency

Freezers: optimized fin design for low-temperature operation and frost control

Display cases: high efficiency fins for stable temperature and product freshness

Cold storage rooms: corrosion-resistant fin coatings for long service life
