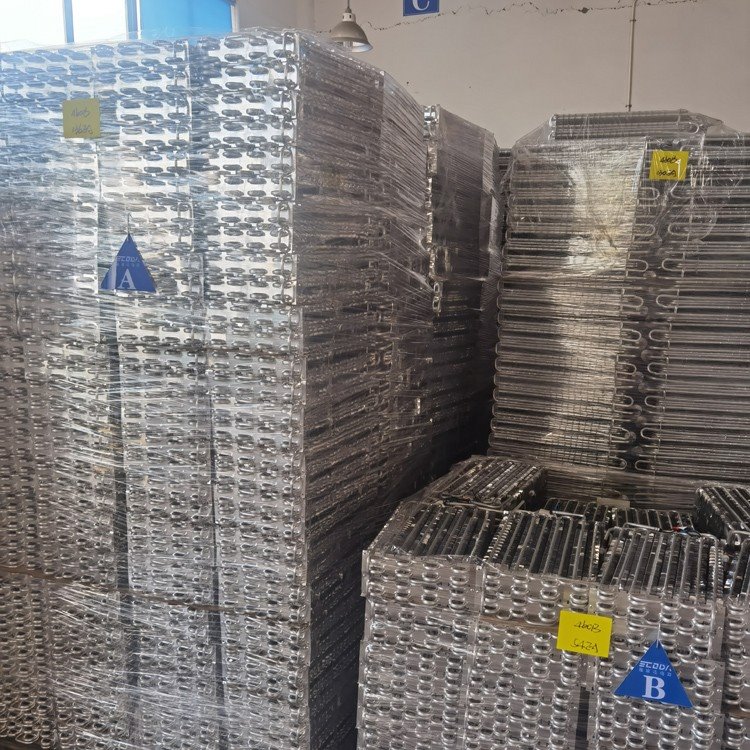

Aluminum Tube And Fin Evaporator
Aluminum Tube and fin Evaporator Structure Aluminum tube finned evaporators are usually drawn and expanded or inclined insert structures. In drawn and expanded structures, the aluminum fins are inserted and fixed to the aluminum tube, and then the fins are tightly bonded to the aluminum tube by...
Description
Aluminum Tube and fin Evaporator
Structure
Aluminum tube finned evaporators are usually drawn and expanded or inclined insert structures. In drawn and expanded structures, the aluminum fins are inserted and fixed to the aluminum tube, and then the fins are tightly bonded to the aluminum tube by an expansion process. The inclined insert structure inserts the fins into the aluminum tube at a certain Angle through a specific process.
Process
The main process includes material preparation, aluminum tube processing and molding, fin insertion and fixing, leak testing, pressure retention testing and packaging steps.
Materials
Aluminum tube
Usually made of aluminum alloy material with good thermal conductivity and corrosion resistance, such as 1060/H112 aluminum alloy. The outer diameter and wall thickness of the aluminum tube are customized according to the specific design requirements.
Aluminum fin
The fin material is mostly aluminum alloy foil, which has good thermal conductivity and ductility. The thickness and shape of the fins have an important effect on the heat exchange efficiency of the evaporator.
