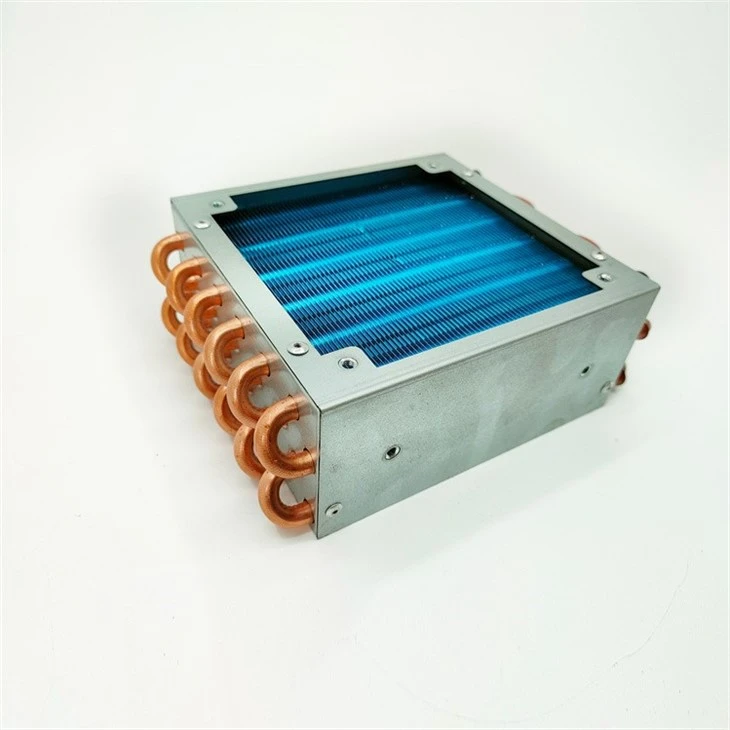

7mm Copper Tube Fin Condenser

7mm Copper Tube Fin Condenser

Widely used in refrigerators, cold storage, condensing units, etc. Dimensions can vary upon request.





Specification

Raw materials: copper tubes, aluminum fins, galvanized sheets, stainless steel sheets, etc.

Copper pipe size: diameter: 7mm, 7.94mm, 9.52mm, inner groove or bare pipe.

Aluminum foil: hydrophilic or bare.

Fin types: louver fins, flat fins, corrugated fins.

Fin spacing can be adjusted between 1.8-5.8mm.

Hole pitch and row pitch: 25x21.65mm, 19.05x12.7mm, 25.4x22mm.

No less than 3.0mpa air pressure (nitrogen) leak test.

We can also provide customized service.





Certificate of honor

Other different types of evaporator/condenser

Product superiority

Factory actual shoot

Service process

Packaging transportation

Our condensers can be used in refrigerators, freezers, display cases, water dispensers, water coolers.

We can supply products according to customers' drawings or samples.

Please feel free to contact us if you have needs.



Why choose us?

• Our dedication to quality and customer satisfaction has earned us a loyal customer base and a strong reputation in the industry.
• We are willing to establish long business relationship with those who seek the high quality products and good service.
• Our expertise in the field of Condenser products allows us to provide valuable insights and advice to our customers.
• Our company is committed to provide customers with comprehensive and complete technical solutions, so that customers improve production efficiency, improve product quality, and meet customer needs.
• Our products are manufactured to the highest standards of quality and are verified by our rigorous testing and inspection processes.
• Our company adheres to the responsibility of communication and solving customers' questions. For every customer friend, your requirement is the best support for us.
• We offer a range of customization options for our Condenser products, allowing our customers to choose the features that best meet their needs.
• We strictly abide by the quality policy and assist in the implementation of continuous quality improvement.
• Our commitment to quality and customer satisfaction is evident in everything we do, from product development to delivery and beyond.
• Our company has introduced many sets of advanced processing equipment and technology to expand the processing capacity of our 7mm Copper Tube Fin Condenser.



Specification of aluminum tube fin condenser

Aluminum tube	Hole distance	Column distance	Flating height of fin
7	21	12.7	1.6-2.4
7	21	18.2	1.5-4.5
9.52	25	21.65	1.8-5.7



Specification of copper tube fin evaporator&condenser

No.	Copper tube	Hole distance	Column distance	Flating height of fin
1	5	19.05	16	1.5-5
2	5	21	18.2	1.5-5
3	6	25	21.65	1.4-6
	6.35	25	21.65	1.4-6
4	7	25	21.65	1.4-6.5
5	7	21	12.7	1.4-3
6	7	21	18.2	1.4-6.5
7	7	21.8	20	1.5-4.5
8	7.94(5/16)	25	21.65	1.4-5
9	9.52(3/8)	25	21.65	4.0-10
10	9.52(3/8)	25.4	15.88	1.4-3
11	9.52(3/8)	25	12.5	1.8-5
	9.52(3/8)	25	25	1.4-4
12	9.52(3/8)	35	35	5.0-10
13	12(7/16)	35	35	6-8.5
14	12.7(1/2)	31.75	27.5	6-8.5
