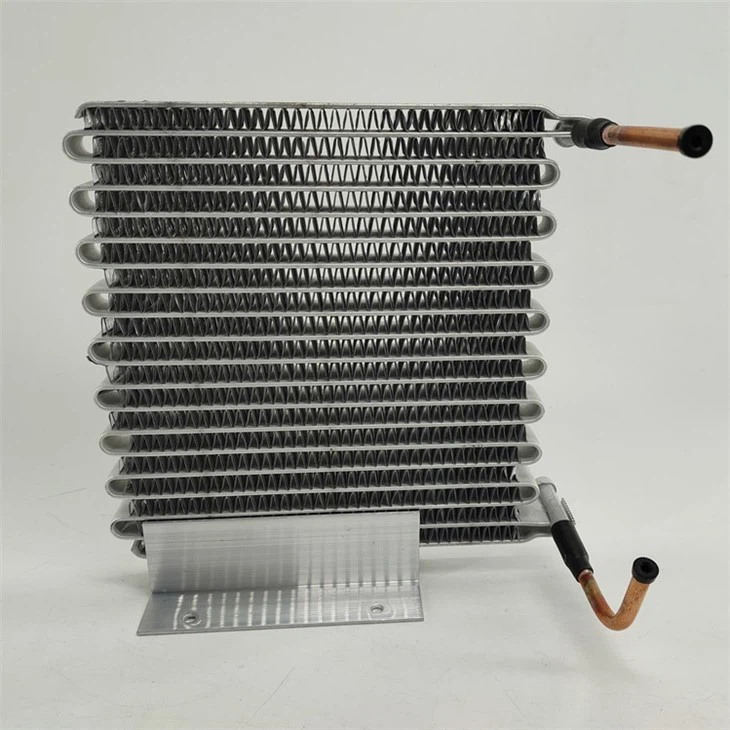

Serpentine Evaporator Coil
The serpentine evaporator coil is a unique aluminum heat exchanger consisting of thin microchannel tubes bent into a serpentine shape, reinforced louver fins, and connecting tubes integrally brazed together using high-grade aluminum alloys. Most are used in automotive air conditioning systems....
Description
The serpentine evaporator coil is a unique aluminum heat exchanger consisting of thin microchannel tubes bent into a serpentine shape, reinforced louver fins, and connecting tubes integrally brazed together using high-grade aluminum alloys. Most are used in automotive air conditioning systems.
Feature
1. The micro-channel heat exchanger is a highly compact all-aluminum structure heat exchanger.
2. Compared with the traditional finned tube heat exchanger, the micro-channel serpentine evaporator coil adopts micro-heat exchange technology, which is smaller in size and lighter in weight. The thermal efficiency is increased by 50%, and the refrigerant injection flow rate is reduced by 50%.
3. With the rise of raw material prices, the continuous improvement of air-conditioning product standards and environmental protection requirements, micro-channel heat exchangers are gradually replacing traditional heat exchangers.
Small micro-channel condenser&evaporator coil specification
| Model | Flat tube | Fin | Flat tube distance |
Layer distance |
Condenser normal size |
Bracket&cover shell | Copper tube | ||||
| Single layer |
Normal | Other | Normal | Other | 10 | 10 | Length | Height | Aluminum | Galvanized sheet |
|
| 16*2-10holes | 32*2-25holes | 16*0.08*5 | 16*0.08*2 | 100-350 | 60-310 | dispensable thickness 2mm |
dispensable thickness 1mm |
6.35*0.75 | |||
| 20*2-11holes | 20*0.08*5 | 20*0.08*2 | 6*0.65 | ||||||||
| 25.4*2-12holes | 25.4*0.08*5 | 25.4*0.08*2 | 6*0.5 | ||||||||
| 32*2-12holes | 32*0.08*5 | 32*0.08*2 | 4.76*0.5 | ||||||||
| Double layers |
25.4*2-12holes | 32*2-25holes | 25.4*0.08*5 | 25.4*0.08*2 | 10 | 8 | 4*0.5 | ||||
| 32*12-12holes | 32*0.08*5 | 32*0.08*2 | |||||||||
Certificate of honor
Product superiority
Factory actual shoot
Service process
Packaging transportation
Our condensers/evaporators can be used in refrigerators, freezers, display cases, water dispensers, water coolers.
We can supply products according to customers' drawings or samples.
Please feel free to contact us if you have needs.
Why choose us?
- Our Evaporator products are designed to meet the unique needs of our customers.
- Strong technical strength, the use of scientific production management methods, and the selection of high-quality materials are the guarantee of our high-quality Serpentine Evaporator Coil.
- We are dedicated to providing reliable after-sales support to our customers.
- The company adheres to the corporate tenet of customer-oriented, technology-driven, talent-based, and quality-based life, and constantly develops and innovates to create value for the majority of users with high-quality products and perfect services.
- Our Evaporator products are built to last and stand up to harsh environmental conditions.
- We will work hard together with all employees to achieve deeper reform and quality development of the company.
- Our expert team is always ready to help you find the perfect Evaporator product for your business.
- We are committed to maintaining an industry leader position, implementing a positive branding strategy and full quality management.
- We are committed to providing top-quality Evaporator products and services at competitive prices.
- As a professional Serpentine Evaporator Coil manufacturer integrating R&D, production and sales, we have a group of professional R&D teams, high-quality technical personnel and management personnel, and advanced production, processing and testing equipment.
