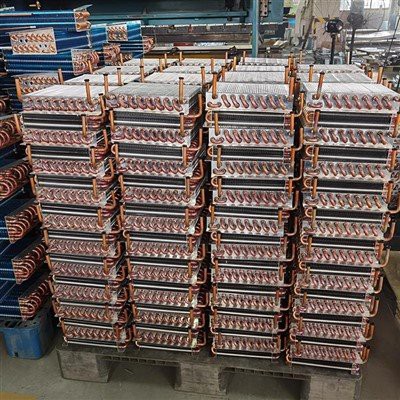

Fresh-keeping Cabinet Fin Evaporator
Structure 1 component fin evaporator is mainly composed of fin tubes, collector tubes, fans and other components. The finned tube is the core component of the evaporator, which is tightly combined with the copper or aluminum tube and the fin to increase the heat exchange area. 2 header The...
Description
Structure
1
component
fin evaporator is mainly composed of fin tubes, collector tubes, fans and other components. The finned tube is the core component of the evaporator, which is tightly combined with the copper or aluminum tube and the fin to increase the heat exchange area.
2
header
The header is used to collect and distribute the refrigerant, ensuring a uniform flow of refrigerant in the finned tube.
3
fan
The fan is responsible for blowing the air in the crisper through the finned tube, speeding up the heat exchange process.
Working principle
The refrigerant evaporates in the fin tube, absorbing heat from the surrounding air and lowering the air temperature.
At the same time, the fan blows the air in the crisper through the finned tube, takes away the heat released when the refrigerant evaporates, and re-sends the cooled air into the crisper to form a circulating refrigeration.
| COPPER TUBE DIAMETER | HOLES PITCH AND ROWS PITCH | FIN SPACE | HOLES ARRAY | FIN SURFACE | FIN EDGE TYPE | DEFROST HEATER |
| Φ15.88mm | 50 X 50mm | 4-10mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
| Φ15.88mm | 38 X 33mm | 2.5-4mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
| Φ12.7mm | 31.75 X 27.5mm | 3-9mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
| Φ9.52mm | 25 X 21.65mm | 1.5-6mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
| Φ9.52mm | 31.75 X 27.5mm | 2.5-7.5mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
| Φ9.52mm | 25 X 21.65mm | 1.5-2.5mm | EQUILATERAL TRIANGLE | LOUVER | FLAT | WITHOUT |
| Φ7.94mm | 25 X 21.65mm | 1.5-3.5mm | EQUILATERAL TRIANGLE | FLAT | FLAT+WAVE | WITHOUT |
| Φ7.0mm | 21 X 12.7mm | 1.3-1.8mm | EQUILATERAL TRIANGLE | LOUVER | FLAT | WITHOUT |
Selection suggestion
Select the appropriate finned evaporator type and specification according to the refrigeration requirements and space size of the fresh-keeping cabinet.
Note that the refrigeration capacity of the evaporator matches the volume of the fresh-keeping cabinet to ensure the refrigeration effect.
Considering the performance indicators such as energy efficiency ratio and noise level of the evaporator, the product with superior performance and stable operation is selected.
