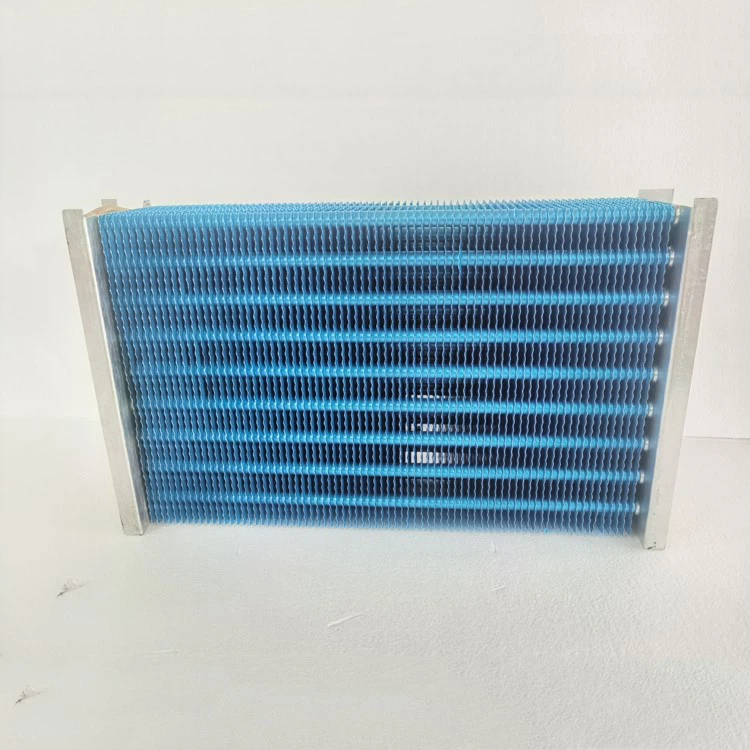

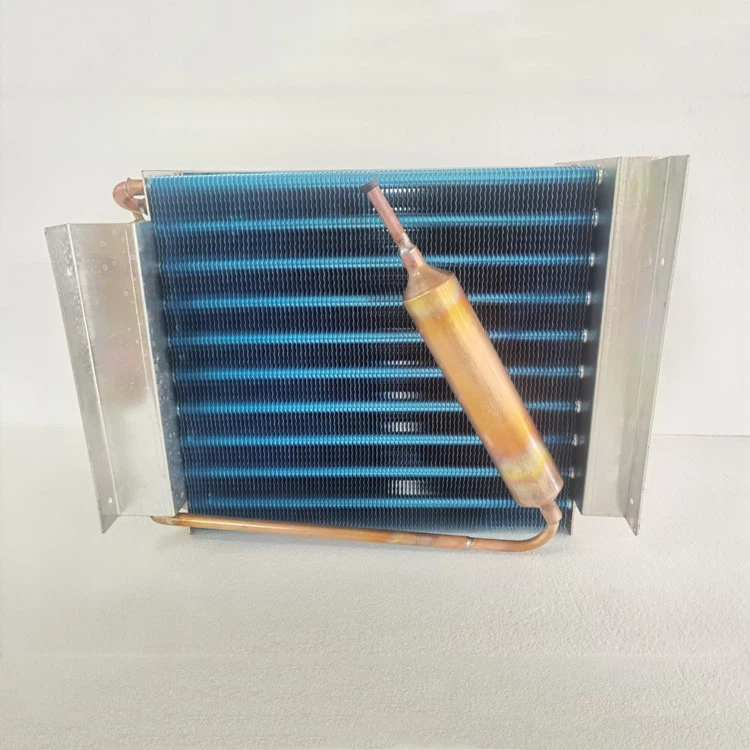

Copper Tube Finned Type Evaporator

A refrigerator's copper tube evaporator typically consists of copper tubes, fins, and other auxiliary components.

The copper tubes, which are the primary elements, facilitate the flow and phase change of the refrigerant. Fins are attached to the copper tubes to increase the surface area, enhancing air contact and improving refrigeration efficiency.

This design allows for efficient heat exchange within a confined space. Copper is chosen for its superior thermal conductivity, enabling rapid heat transfer from the refrigerant to the surrounding air, thus achieving quick cooling.

The evaporator is constructed with high-quality materials and advanced technology, ensuring a compact, robust structure with high reliability and durability for long-term stable operation.

As the refrigerant moves through the evaporator, it absorbs heat from inside the refrigerator and evaporates into a gas. This process cools the interior of the refrigerator.

The refrigerant gas is then drawn into the compressor, where it is compressed into a high-pressure gas, dissipates heat through the condenser, condenses into a liquid, and returns to the evaporator after passing through the expansion valve to reduce pressure.
