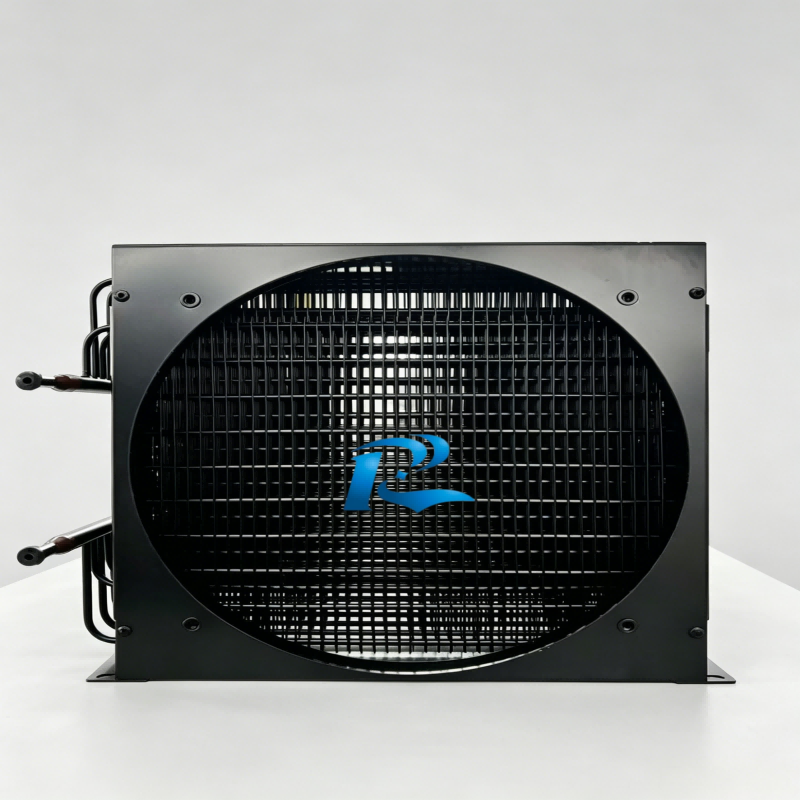

Wire On Tube Condenser For Chest Freezer
Product Positioning Industrial air cooled wire-on-tube condenser, perfect replacement for traditional copper tube aluminum fin condenser, widely applicable to various freezers. Premium Structure Adopts bundy tube and steel wire structure instead of costly copper and aluminum materials, sturdy...
Description
Product Positioning
Industrial air cooled wire-on-tube condenser, perfect replacement for traditional copper tube aluminum fin condenser, widely applicable to various freezers.
Premium Structure
Adopts bundy tube and steel wire structure instead of costly copper and aluminum materials, sturdy structure with good deformation resistance.
Stable Heat Dissipation
Optimized tube length and radiating area ensures equivalent heat exchange performance as original copper fin condensers.
Cost Effective
Greatly cut down production cost, brings obvious price advantage for equipment assembly.
Air Cooled Industrial Wire On Tube Freezer Condenser for Freezer , which could replace of copper tube aluminium fin condenser .
Due to high cost of copper tube , the markets require a new cheaper type cesignondensers .
After our engineer design , test and improvement , we develop a series of air cooled wire tube condenser , for which we use 8mm,6.35mm,4.76mm bundy tubes and 1.2mm/1.4mm steel wire to replace copper tube and aluminium fins.
We increase the heat radiation areas and tube length , to make sure the same exchanger effect with copper tube condenser.
Howeve , its cost is about 40% lower than copper ones .
.
1.Bundy Tube : Φ4.76 ,Φ6 ,Φ6.35,Φ8,Φ9.52 , Wall thickness : 0.7mm
2.Low carbon steel wire : Φ1.0~1.6mm
3.Bracket : Steel Plate (SPCC) ,thickness 0.6~1.5mm
4.Steel plate : SPCC , thickness 0.3~0.4mm
Structure:
-
Flate type of wire on tube condenser used at the back
-
Bended or spiral type of wire on tube condenser used at the botton
-
wrapped type of tube plate condenser
Application Scenarios
| Commercial Refrigeration | Vertical freezers, commercial display cabinets, supermarket island freezers |
| Industrial Cooling | Small industrial refrigerators, cold storage auxiliary cooling units |
| Catering Equipment | Vertical beverage coolers, commercial kitchen refrigerators |
6R
4R
8R
