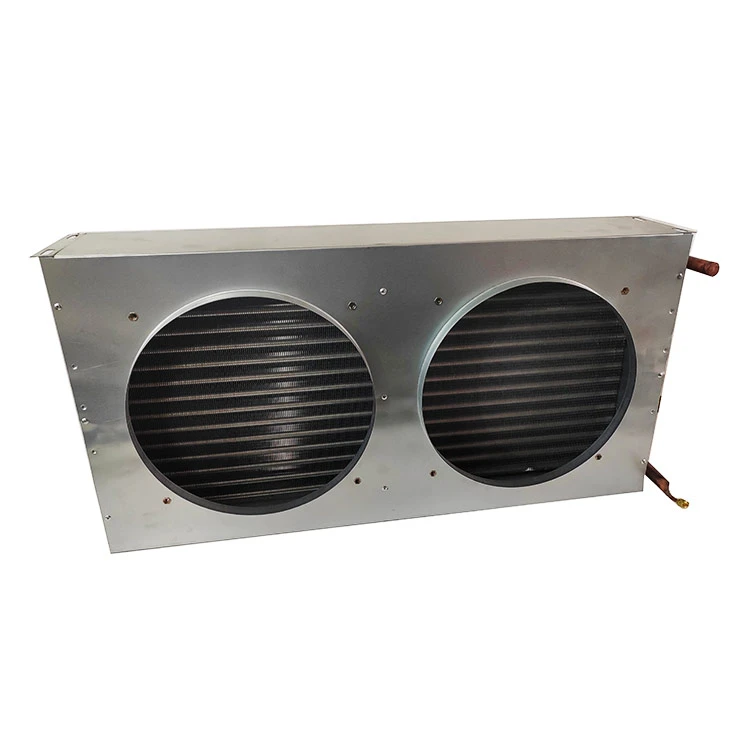

Refrigeration Equipment Copper Tube Aluminum Fin Condenser

Refrigeration equipment Copper tube aluminum fin condenser is an efficient, compact, durable condenser, widely used in industrial refrigeration equipment. This condenser is mainly composed of copper tubes and aluminum fins, so the name copper tube aluminum fin condenser. The following will be a detailed introduction to the product details of this condenser.

Product overview

Refrigeration equipment Copper tube aluminum fin condenser is a kind of efficient condenser, widely used in refrigeration equipment, air conditioning, refrigeration and other fields. Its main function is to transfer the heat in the refrigerant to the external air or other cooling medium, so as to condense the refrigerant. This kind of condenser has the advantages of high heat transfer efficiency, small size and light weight, so it is widely used in industrial refrigeration equipment.

Product characteristics：

Efficient heat transfer: Copper tube aluminum fin condenser adopts the composite structure of copper tube and aluminum fin, which gives full play to the excellent thermal conductivity of copper and aluminum, high heat transfer efficiency and good cooling effect.

Small size: Due to the compact design, the volume of the copper tube aluminum fin condenser is relatively small, which can save space, especially suitable for applications with limited space.

Light weight: The material selection of copper tube and aluminum fin condenser is reasonable and the structure is simple, so its weight is relatively light and easy to install and move.

The tube bundle of the condenser adopts high-quality copper tubes and aluminum alloy fins, which can withstand high working pressure and ensure the long-term stable operation of the equipment.

Good anti-corrosion performance: The surface of the copper tube aluminum fin condenser is specially treated, which has good anti-corrosion performance and can adapt to various corrosive environments.

Easy maintenance: copper tube aluminum fin condenser has simple structure, easy disassembly, easy cleaning and maintenance, and reduces maintenance costs.

Product application

Industrial refrigeration equipment: copper tube aluminum fin condenser is widely used in a variety of industrial refrigeration equipment, such as refrigeration units, air conditioning systems, freezer and so on. It can be used as a stand-alone condenser unit or combined with other equipment to form a refrigeration system.

Food processing industry: The food processing industry requires a large number of refrigeration equipment to maintain the freshness and taste of food. Copper tube aluminum fin condenser can be applied to a variety of food processing equipment, such as cold storage, freezer, refrigerated display cases, etc.

Pharmaceutical and chemical industry: The pharmaceutical and chemical industry has high requirements for the performance and reliability of equipment. Copper tube and aluminum fin condenser can meet its specific needs, such as high temperature and high pressure refrigeration, high precision temperature control and so on.

Other fields: In addition to the above application areas, copper tube aluminum fin condenser can also be used in Marine, electric power, metallurgy and other fields. In these areas, it can help achieve compactness, efficiency and reliability of refrigeration equipment.

Product structure and working principle

Product structure: Copper tube aluminum fin condenser is mainly composed of copper tube and aluminum fin. Copper tubes are responsible for heat transfer, and aluminum fins enhance the heat transfer area. In addition, it also includes some support structures such as frame, water chamber, etc.

Working principle: In the refrigeration system, the high temperature and high pressure refrigerant is compressed by the compressor and then enters the condenser. In the copper tube aluminum fin condenser, the refrigerant exchanges heat with the external air or other cooling medium through the copper tube, the heat is transferred out, the temperature of the refrigerant drops and is condensed into a liquid. Through this process, the refrigerant transfers heat to the external air or other cooling medium, achieving the cooling effect.

Product manufacturing process and flow

Raw material preparation: First of all, we need to prepare high-quality copper tubes, aluminum alloy fins and other raw materials. These materials need to undergo strict inspection and control to ensure that their quality and performance meet the requirements.

Cleaning and drying: Raw materials are cleaned and dried to remove impurities and moisture from the surface to ensure high quality and reliability of the product.

Composite treatment: Composite treatment of copper tubes and aluminum fins, so that they are closely combined together. This step is one of the key links in the manufacturing process and requires the use of advanced production processes and technologies to ensure the stability and reliability of the composite layer.

Packaging and testing: Finally, the composite copper tube aluminum fins are packaged and tested. Care needs to be taken to protect the composite layer from damage during the packaging process, while ensuring the beauty and practicality of the product. The inspection process requires strict testing and inspection of the performance and quality of the product to ensure that it meets the relevant standards and customer requirements.

Other links: According to specific needs, it may also include other processing links such as welding, pressure testing, etc. These links also need to be strictly controlled and managed to ensure that the quality and performance of the product meet the requirements.

Product superiority

Factory actual shoot

Service process

Packaging transportation
