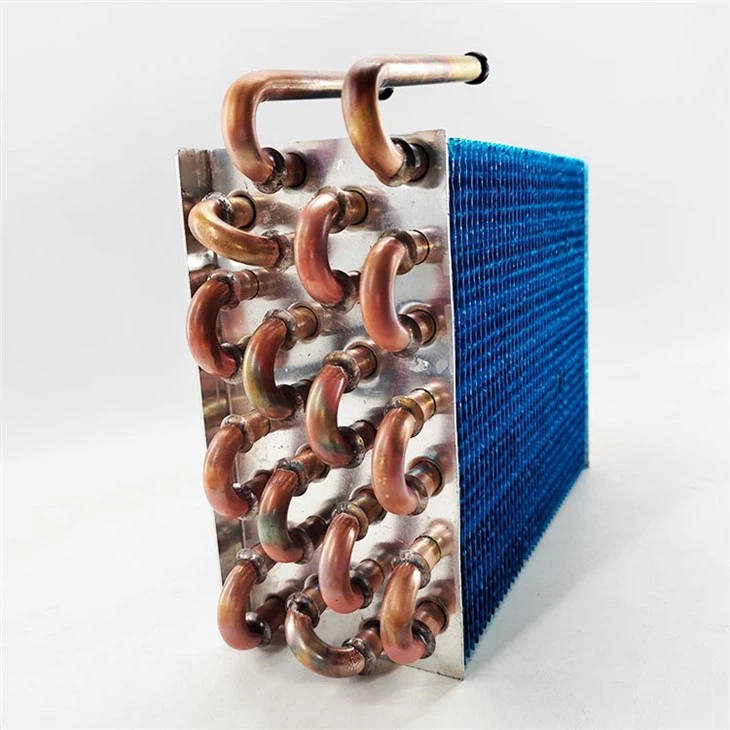

Copper Tube Aluminum Fin Condenser

Copper tube aluminum fin condenser is a type of heat exchanger that is commonly used in air conditioning and refrigeration systems. It consists of a series of copper tubes that run through a series of aluminum fins. The copper tubes carry a refrigerant fluid, while the aluminum fins work to transfer heat from the refrigerant to the surrounding air.

The use of copper and aluminum in the design of this type of condenser offers several benefits. Copper is an excellent conductor of heat and is able to transfer heat quickly and efficiently. Aluminum is lightweight and durable, making it ideal for use in air conditioning and refrigeration systems.

The design of a copper tube aluminum fin condenser also allows for efficient heat transfer. The fins increase the surface area of the condenser, allowing for more heat to be transferred from the refrigerant to the surrounding air. This results in a more effective cooling process and can help to reduce energy consumption.

Overall, the use of a copper tube aluminum fin condenser is a reliable and efficient way to cool air and refrigerants in a variety of applications.





The production process for copper tube aluminum fin condensers typically involves the following steps:

1. Tube Cutting: Copper tubes of required length are cut from coils.

2. Tube Expansion: The ends of the copper tubes are expanded to ensure a tight fit into the aluminum fins.

3. Finning: The copper tubes are then inserted into the aluminum fins which are rolled onto the tube surface.

4. Core Assembly: The copper tube aluminum fin cores are then assembled by stacking them into a frame and spacing them appropriately.

5. Brazing: The assembled cores are then brazed in a furnace at high temperature to create a solid, leak-proof joint between the copper tubes and aluminum fins.

6. Cleaning: The brazed cores are then cleaned to remove any residue or impurities left from the brazing process.

7. Painting: The condenser is painted with a corrosion-resistant coating to protect it from the elements.

8. Final Assembly: Other components, such as fans, are then attached to the finished condenser to create a complete unit.

Once the condenser is assembled and tested, it is ready to be installed in a variety of air conditioning and refrigeration applications.



Product display:









Certificate of honor

Other different types of evaporator/condenser

Product superiority

Factory actual shoot

Service process

Packaging transportation
