Bundy Tube Wire Condenser
Bundy Tube Wire Condenser Structure: Bundy Tube Wire Condenser is mainly made of Bundy tube (also known as copper-plated steel pipe) and steel wire, combined by welding or other means. These pipes and wires can be machined into different shapes according to different needs, such as flat, spiral...
Description

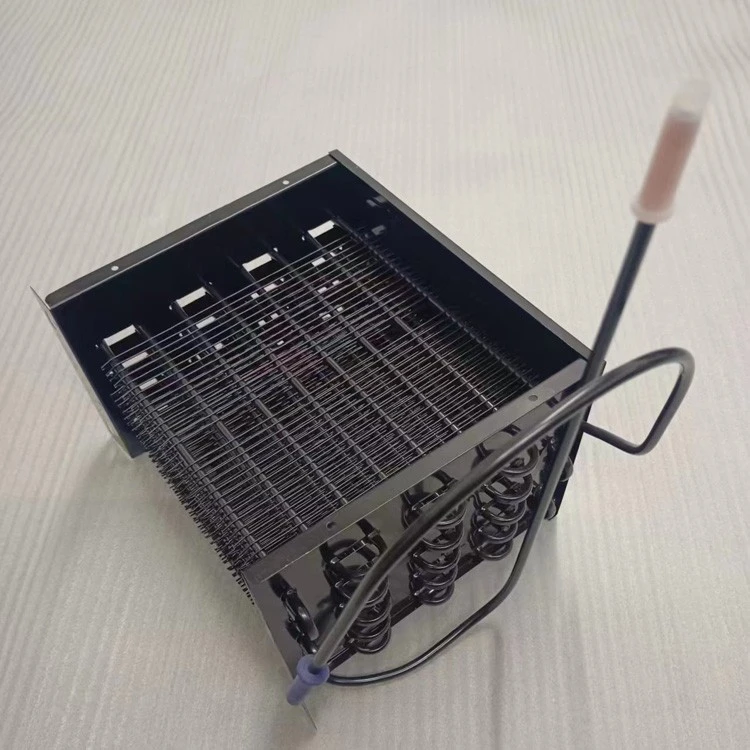

Bundy Tube Wire Condenser
Structure: Bundy Tube Wire Condenser is mainly made of Bundy tube (also known as copper-plated steel pipe) and steel wire, combined by welding or other means. These pipes and wires can be machined into different shapes according to different needs, such as flat, spiral or louver type.
Materials:
Bundy pipe: This is a specially treated steel pipe that is coated with a layer of copper to improve its corrosion resistance and heat conduction properties.
Steel wire: Used to tie Bundy tubes together to increase the strength and stability of the condenser.
Bracket: usually made of steel plate, used to fix the overall structure of the condenser.
High quality
advanced equipment
professional team
one-stop solution
Working principle
The operating principle of the Bundy Tube Wire Condenser is based on the heat exchange principle. In a refrigeration system, the refrigerant flows in the condenser and gives off heat, which is dissipated through the surface of the condenser to the surrounding air. Because the Bundy tube has excellent heat conduction properties, it can effectively transfer the heat in the refrigerant to the wire and bracket, and eventually dissipate into the air.
Main Materials:
| Bundy Tube | Φ4.76 ,Φ6 ,Φ6.35,Φ8,Φ9.52 , Wall thickness : 0.7mm |
| Low carbon steel wire | Φ1.0~1.6mm |
| Low carbon steel wire | Φ1.0~1.6mm |
| Steel plate | SPCC , thickness 0.3~0.4mm |
use
refrigerator
freezer
Refrigerated display cabinet
Water dispenser
Air conditioning unit
